Mission

Project Name: Applying Navigation System on our Zetabot

• - This mission is a group project.
• - Construct a map within your team.
• - Navigate the contructed map with the Zetabot as a team.

Constructing a Map (as a Team)

For our navigation mission, we we hold a cooperative mission with other teams.

• For each team, 3 map panels will be given.

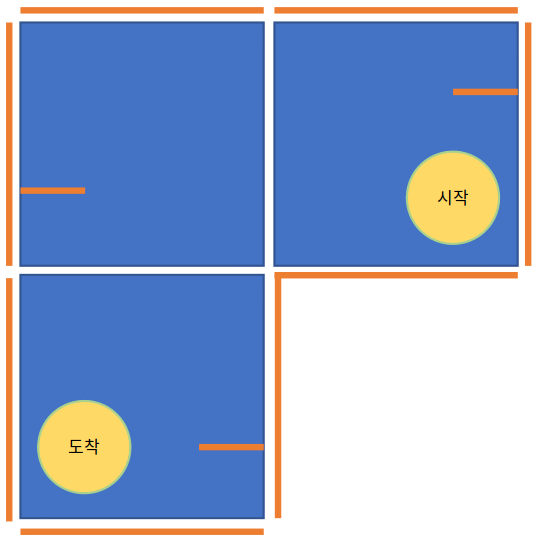

• As a team try to arrange the panels so that there is a clear starting and finishing zone. For example:



Mapping the Constructed Map

Place the Zetabot on the starting location of the map.

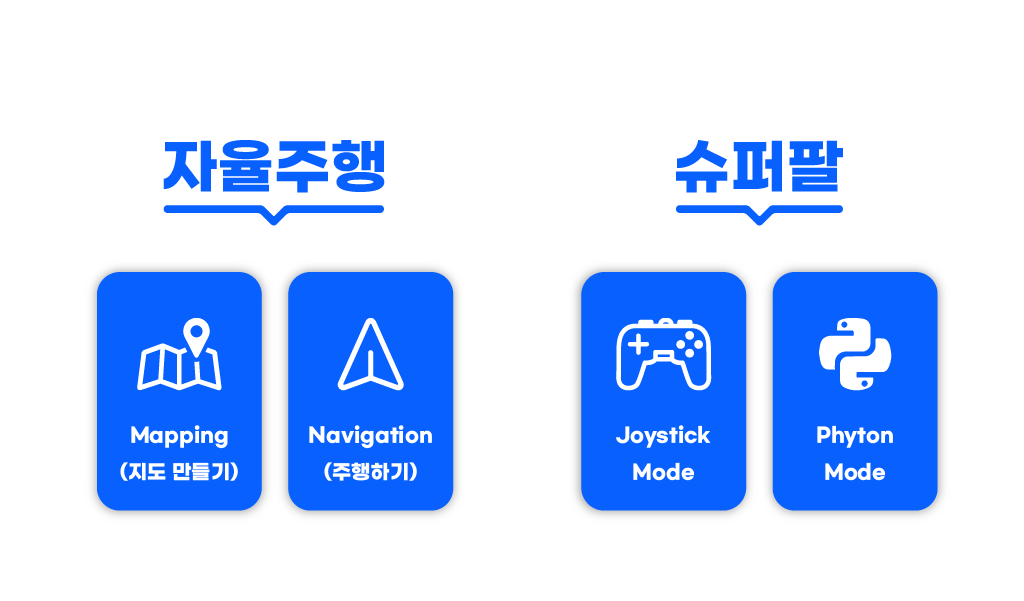

On each of the Zetabot screen, the following will be displayed:

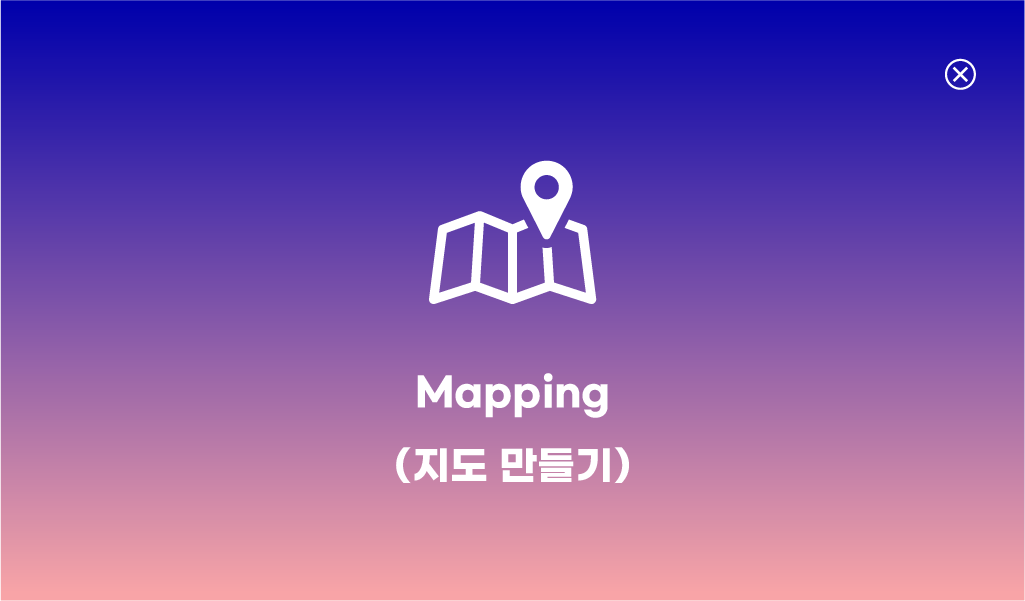

1. Select the Mapping button.

   • This will start the mapping simulation. Using SLAM method, the robot will utilize its LIDAR sensors as well as multiple odometry sensors to map out its immediate surroundings.

   • By using the controller, move the Zetabot around the constructed map to learn its surroundings.

   • Once the entire map is learned and constructed virually, save the map by pressing the Save Map



2. Exit the Mapping Program without saving.

3. Exit the Mapping Menu



Executing Navigation

Place the Zetabot in the starting position.

• Press the Navigation button in the main menu. This will start the RViz application, whereupon the navigation will be conducted.

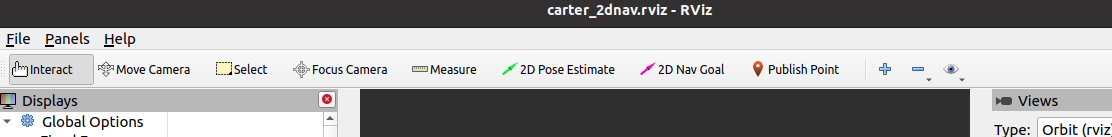

• Press the 2D Pose Estimation to align the starting position of the Robot.

• Click on 2D Nav Goal and click the desired location and drag the curser to set which direction the robot should face once it reaches the said location.



Team Competition

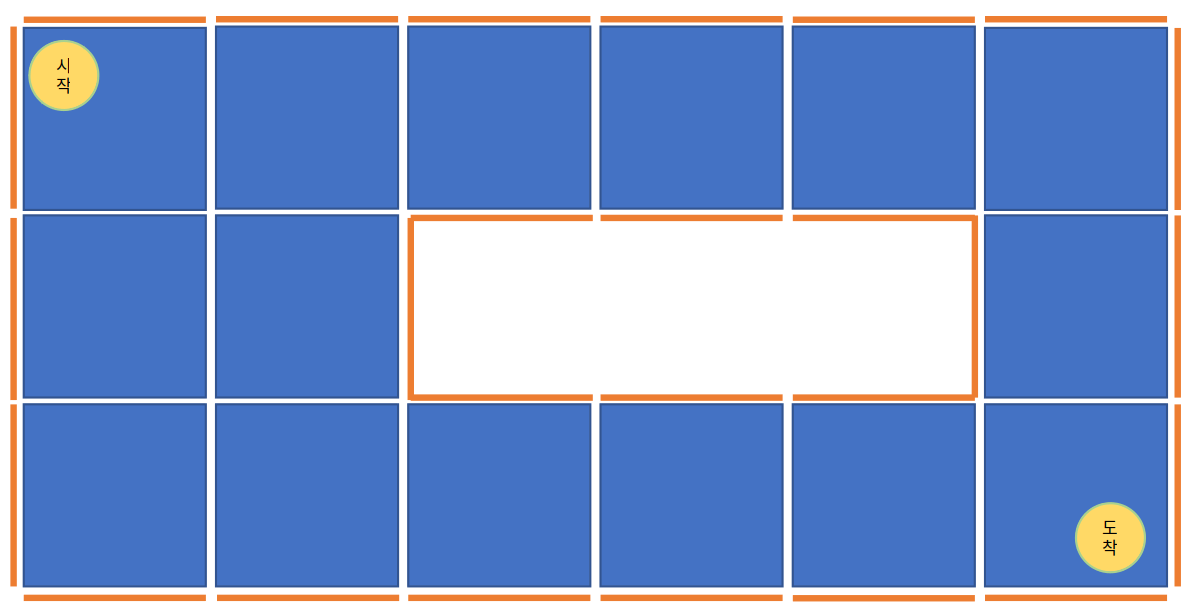

• With other team members, construct a large map with starting and finishing position. Example:



• Team by team, execute the navigation task with your Zetabot.
