Tracking a Face with the Robotic Arm

Follow along: Tracking a Face with the Robotic Arm

The program launching process along with parameter settings are all simplified and set up on the Jupyter Notebook Environment.

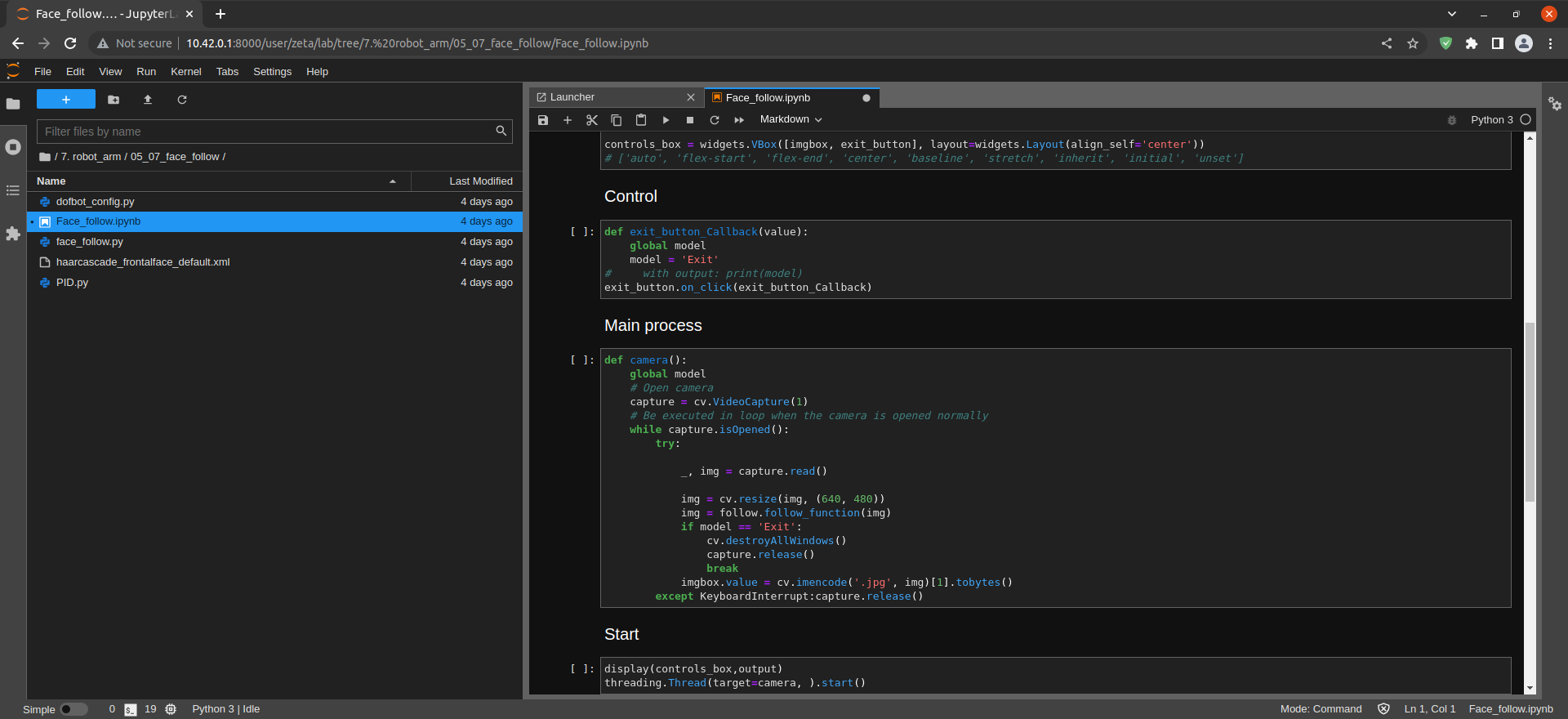

• Open the 05_07_face_follow.ipynb Jupyter Notebook
• Load Arm_Lib module and register the robot arm as an object
• Create the instance and initialize the parameters
• Creating controls
• Switch mode
• Execute the Code

(The Jetson Board used for these examples are => Jetson Nano)

---

• 05_07_face_follow

• Running the cell code

  Ctrl + Enter

• To make sure that no other program is using the robot arm, turn off the joy stick control and allow for robot arm to be controlled:

%%capture
!pm2 stop 14
!pm2 start 15

• Face Recognition and Tracking Using Robot Arm Camera

• Import head file

import cv2 as cv
import threading
from time import sleep
import ipywidgets as widgets
from IPython.display import display
from face_follow import face_follow

• Initialize DOFBOT position

import Arm_Lib
Arm = Arm_Lib.Arm_Device()
joints_0 = [90, 150, 20, 20, 90, 30]
Arm.Arm_serial_servo_write6_array(joints_0, 1500)

• Create the instance and initialize the parameters

follow = face_follow()

model = 'General'

• Creating controls

button_layout = widgets.Layout(width='250px', height='50px', align_self='center')
output = widgets.Output()

exit_button = widgets.Button(description='Exit', button_style='danger', layout=button_layout)

imgbox = widgets.Image(format='jpg', height=480, width=640, layout=widgets.Layout(align_self='center'))

controls_box = widgets.VBox([imgbox, exit_button], layout=widgets.Layout(align_self='center'))
# ['auto', 'flex-start', 'flex-end', 'center', 'baseline', 'stretch', 'inherit', 'initial', 'unset']

• Controls

def exit_button_Callback(value):
    global model
    model = 'Exit'
#     with output: print(model)
exit_button.on_click(exit_button_Callback)

• Main Process

def camera():
    global model
    # Open camera
    capture = cv.VideoCapture(1)
    # Be executed in loop when the camera is opened normally
    while capture.isOpened():
        try:

            _, img = capture.read()

            img = cv.resize(img, (640, 480))
            img = follow.follow_function(img)
            if model == 'Exit':
                cv.destroyAllWindows()
                capture.release()
                break
            imgbox.value = cv.imencode('.jpg', img)[1].tobytes()
        except KeyboardInterrupt:capture.release()

• Start

display(controls_box,output)
threading.Thread(target=camera, ).start()

• Reset the Robot Arm control

%%capture
!pm2 stop 15
!pm2 start 14
